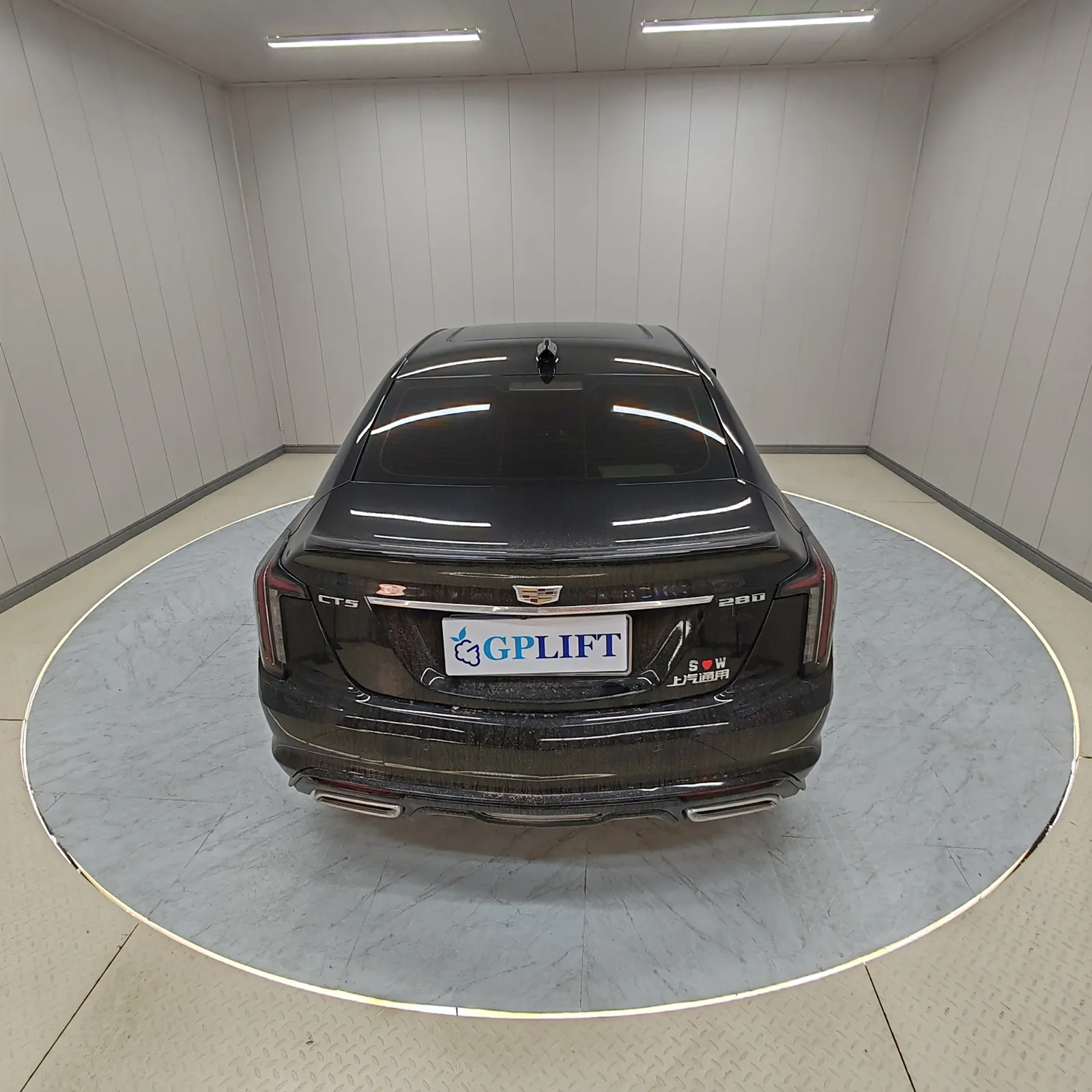

Custom Rotary Display Platforms

Car TurntablesFor Garage Parking, Auto Show & Stage Display

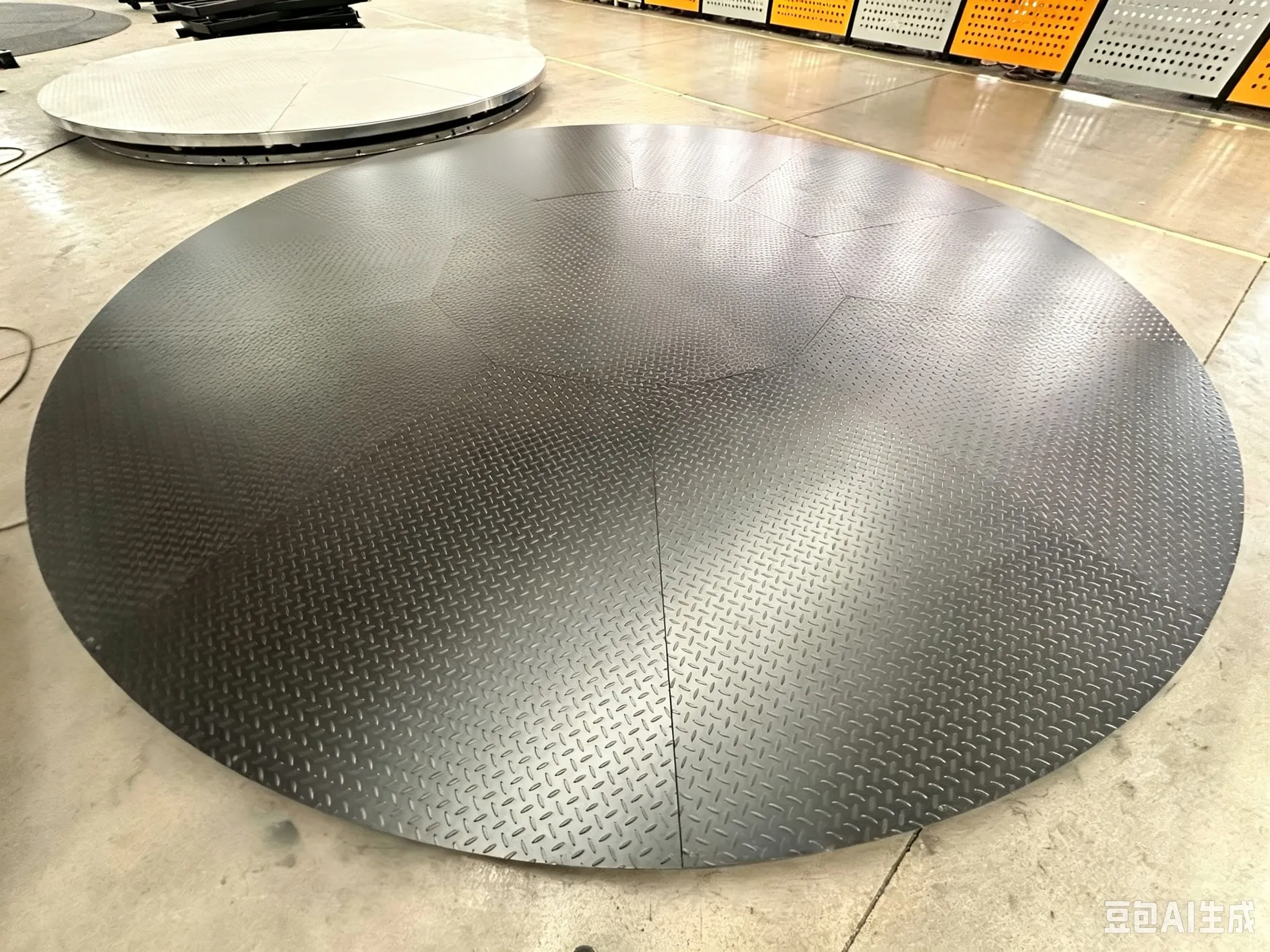

Name: Car Turntable (Pit & Floor Mounted)
Brand: GP Lift
Availability: InStock

GP LIFT manufactures fully customized vehicle rotary turntables, including recessed underground type and surface-mounted models. Perfect for villa parking space saving, luxury car exhibition, commercial stage display and car show dynamic presentation.

View Full Specifications

Space-Saving Garage Turn

Luxury Exhibition Display

Full Custom Size & Load

See the Turntable in Action

Watch how a GP LIFT car turntable rotates a vehicle smoothly and quietly — ideal for villa garages, auto showrooms and commercial stage displays.

GP LIFT vehicle turntable in operation — smooth 360° rotation with quiet, stable performance.

Two Core Turntable Series

Choose recessed underground turntable for integrated luxury installation or surface-mounted turntable for low-cost, fast construction without ground excavation.

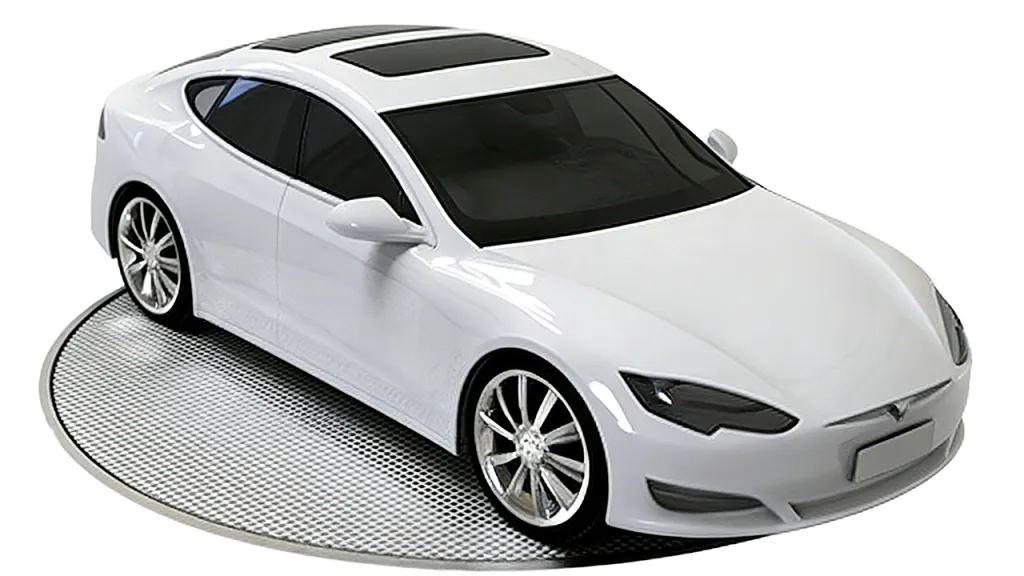

Recessed Underground Turntable

Requires 250mm depth pit installation, platform flush with ground after finishing. Ultra minimalist integrated look, top choice for high-end villas, luxury auto showrooms and boutique exhibition halls.

Diameter: 3.5 - 6.5m | Load: From 2000kg
400W drive motor, stable low-noise rotation
Custom tile, terrazzo, polyurethane surface covering

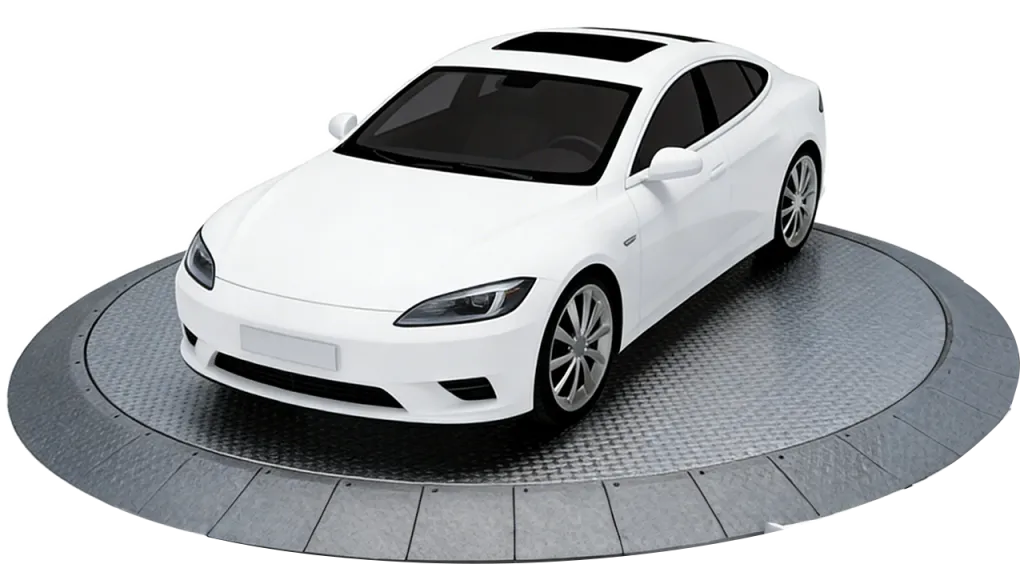

Surface Mounted Turntable

No pit digging required, total height only 120mm. Equipped with supporting access ramps, suitable for finished garages, temporary exhibition booths and commercial stage vehicle displays. Low construction cost & short project cycle.

Diameter:4m - 5m | Load: 3000-4000 kg
6 - 8 pcs 180w energy-saving drive motors
Standard matching access ramps included

Complete Technical Specifications

Adjustable rotation speed, multi-voltage support, full structural safety design

Item	Surface‑Mounted Car Turntable (with a circle of ramp)	Flush‑Mounted Car Turntable (Pit-mounted)
Installation Type	Above‑ground, Supplied with access ramps	Pit installation required Flush with finished floor
Min. Height	120 mm	250 mm
Diameter	4-5m	3.5m - 6.5m (Customizable)
Rated Capacity	3000KG - 4000KG	3000KG - 5000KG (Customizable)
Rotation Speed	0.2-2RPM (Frequency control) / 1.8RPM	0.2-2RPM (Frequency control) / 1.8RPM
Drive Motor	120W × 4 pcs (energy-saving)	400W × 4 pcs
Ramp Configuration	Circular access ramps (400mm ramp length)	Pair of access ramps (2 pcs) Pit 250mm depth
Rotate Mode	Clockwise / Counter-clockwise / Stop	Clockwise / Counter-clockwise / Stop
Power Supply	Single‑phase power	Single‑phase power (Customizable)
Power Plug Options	NEMA (US) BS1363 (UK) Schuko (EU)	NEMA (US) BS1363 (UK) Schuko (EU)
Surface treatment	Powder coating finish	Powder coating finish
Remote Controls	2 units	2 units
Packaging	Wooden Package	Wooden Package
Applicable situations	Finished garages Temporary exhibition booths Commercial vehicle display stages	High‑end villas Luxury car showrooms Boutique exhibition halls
Others Optional	-	1. Platform surface: tile, terrazzo, polyurethane surface covering 2. Surface finish: Hot-dip Galvanizing / E-coating 3. Programmable rotation: adjustable speed & rotation angle 4. Custom Color (RAL code)

Rotation & Power System

Speed: 0.2–2rpm variable frequency adjustable
Rotation mode: Clockwise / Counter-clockwise / Stop
Voltage: 110V/220V/380V/415V single & three phase
Dual wireless remote + wired control box

Heavy Load Structure

Main frame: 80×40×3mm rectangular steel tube
UHMWPE heavy-duty support rollers, 1000kg single roller load
Anti-vibration smooth rotating platform
Whole set passed static & dynamic load test

Custom Optional Accessories

Custom length steel / PE plastic access ramps
EU / UK / US standard power plugs
Full RAL color painting customization
Decorative glass, tile, aluminum surface panel

Turntable Construction Details

Every GP LIFT turntable is engineered with precision components for stable rotation, easy installation and long service life.

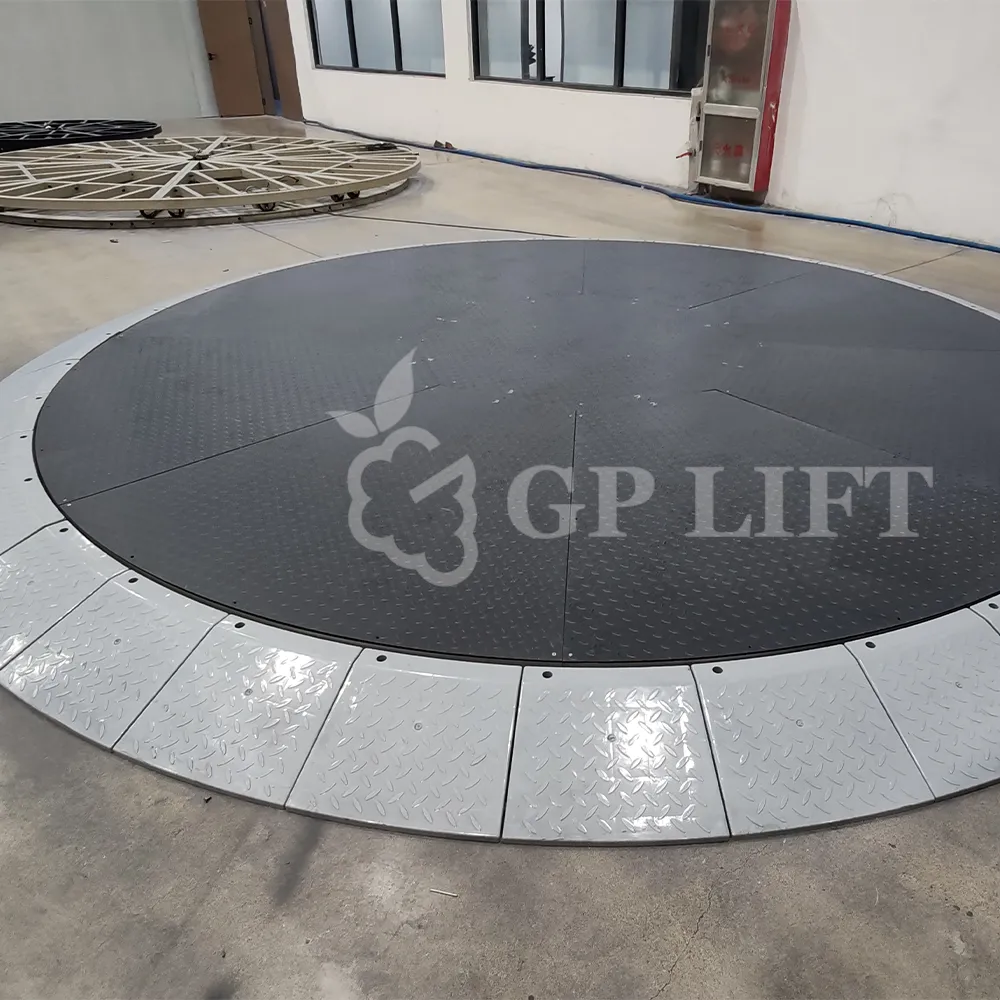

Floor-Mounted Type

Total height only 120mm, can be installed directly on the finished floor without excavation — ideal for existing garages and showrooms.

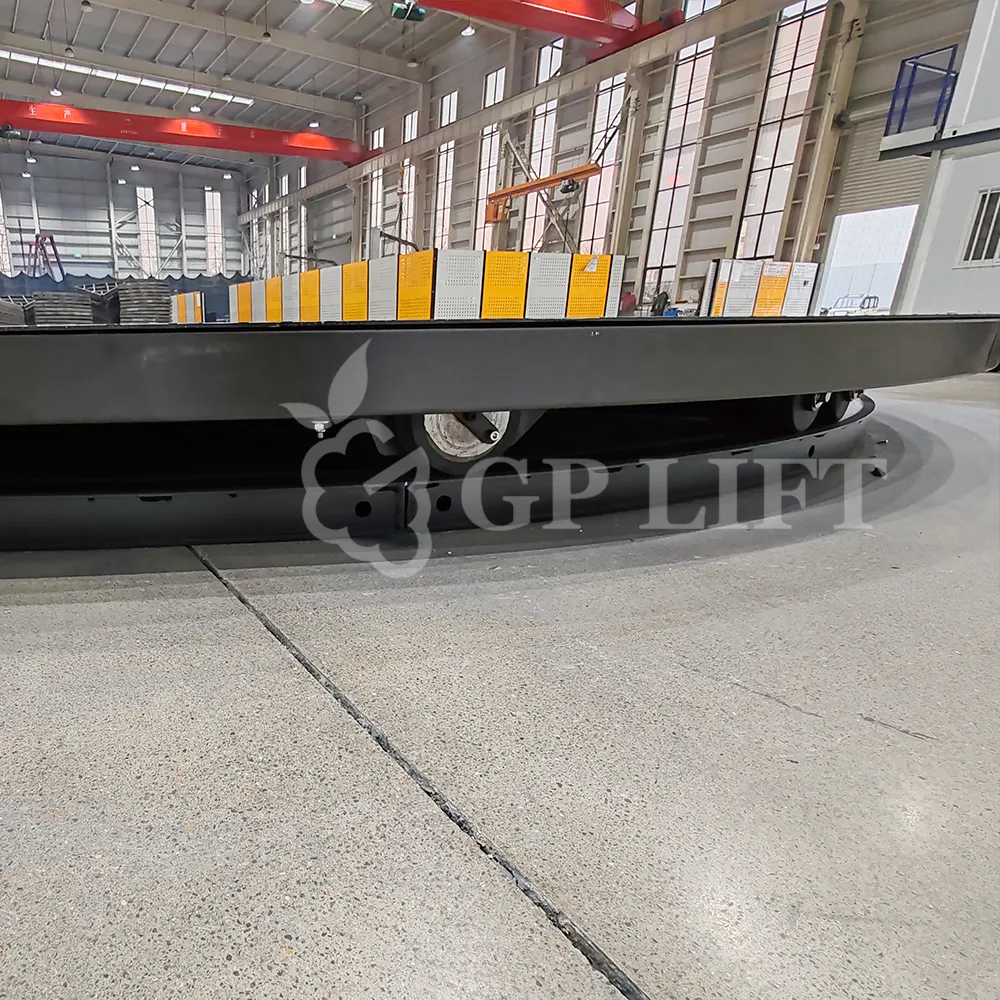

Pit-Mounted Type

Total height 250mm, designed for installation in a pit so the platform sits flush with the finished floor for a seamless luxury look.

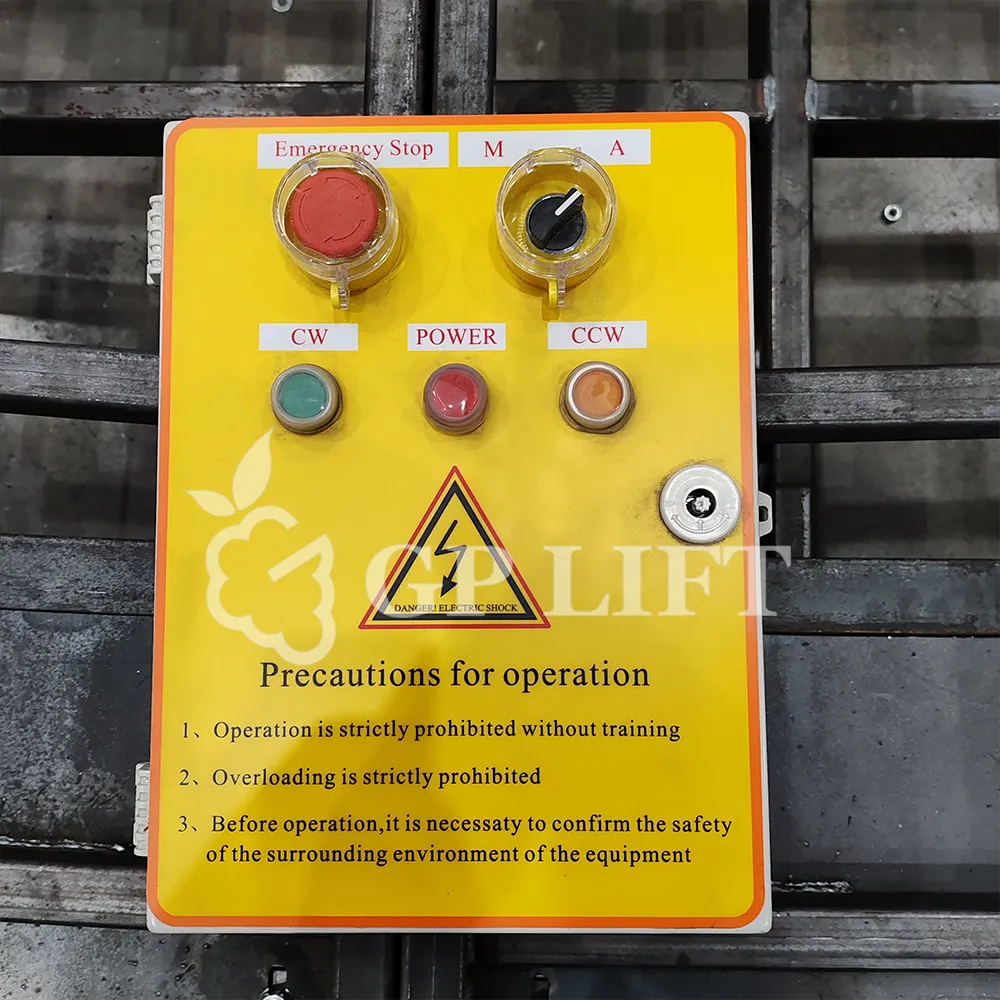

Control Box

Buttons are equipped with waterproof and dustproof covers. Two industrial remote controls are included for flexible operation.

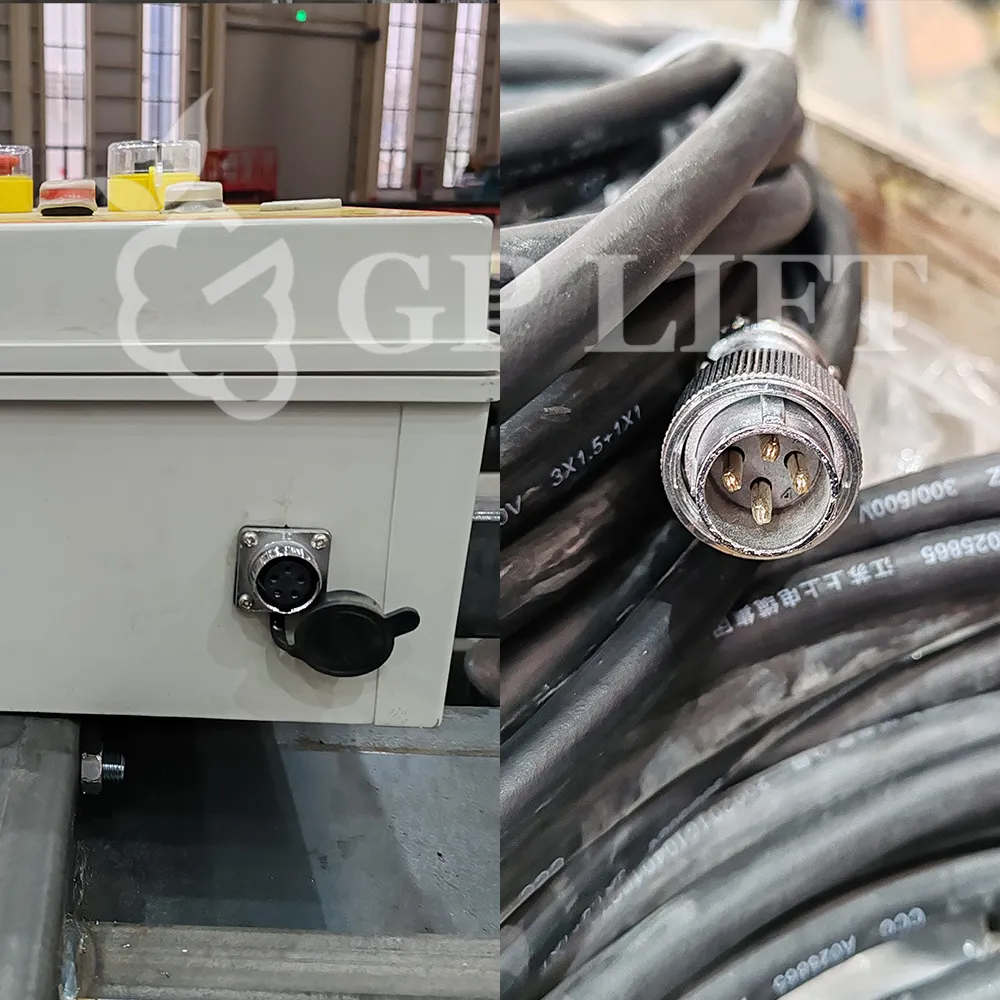

Turntable aviation plug electrical connection

Plug & Play Wiring

The control box connects to the machine via an aviation plug, allowing easier installation and true plug-and-play functionality.

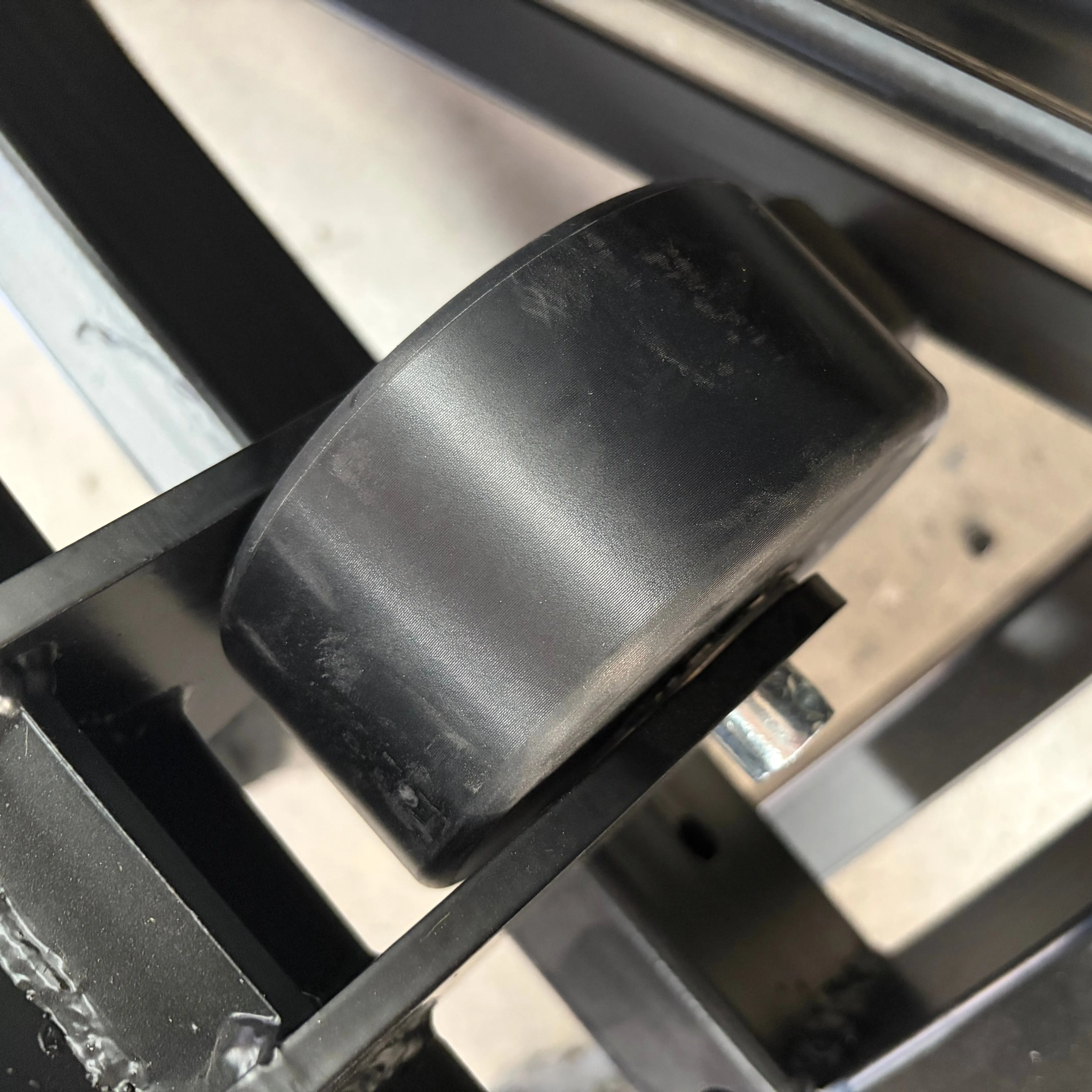

Heavy-Duty Wheels

Equipped with ultra-high molecular weight polyethylene (UHMWPE) wheels. Each wheel can support a load of up to 1000 kg.

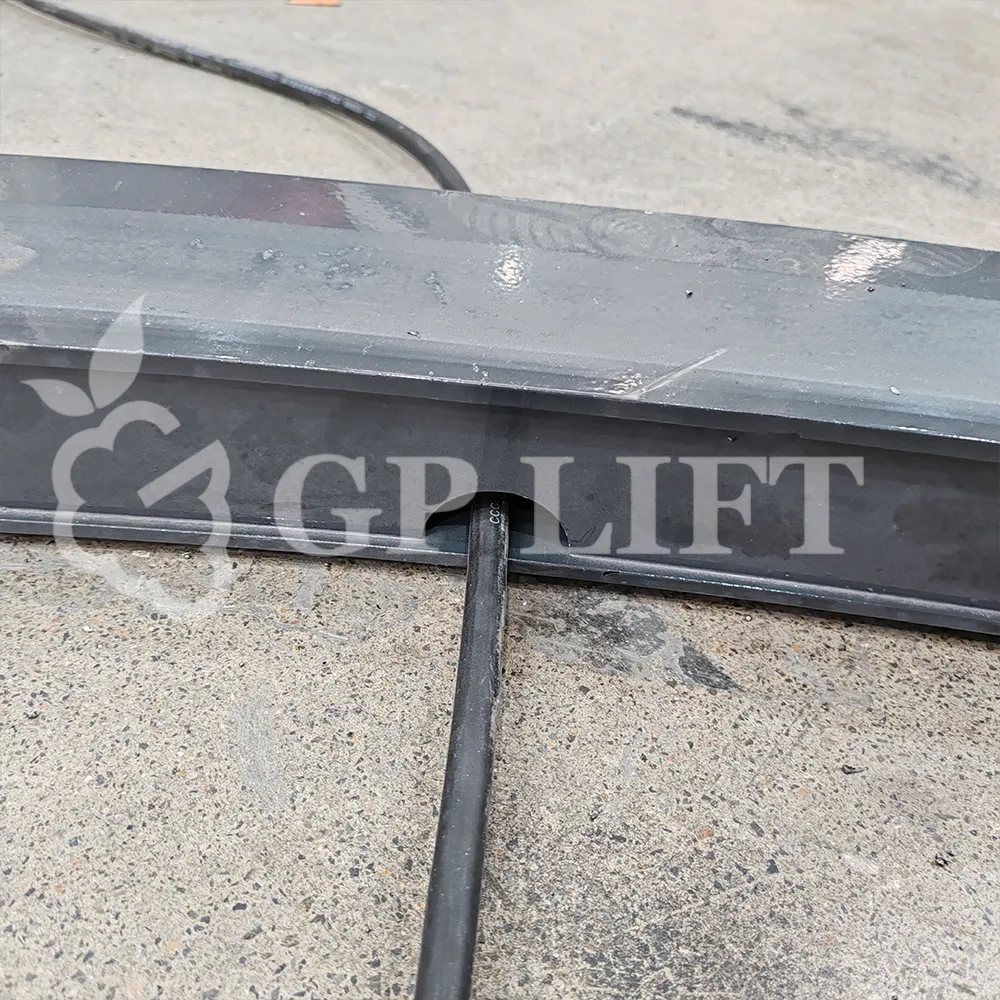

Pre-Wired Track

The track comes pre-installed with wiring holes for easy and tidy installation on site.

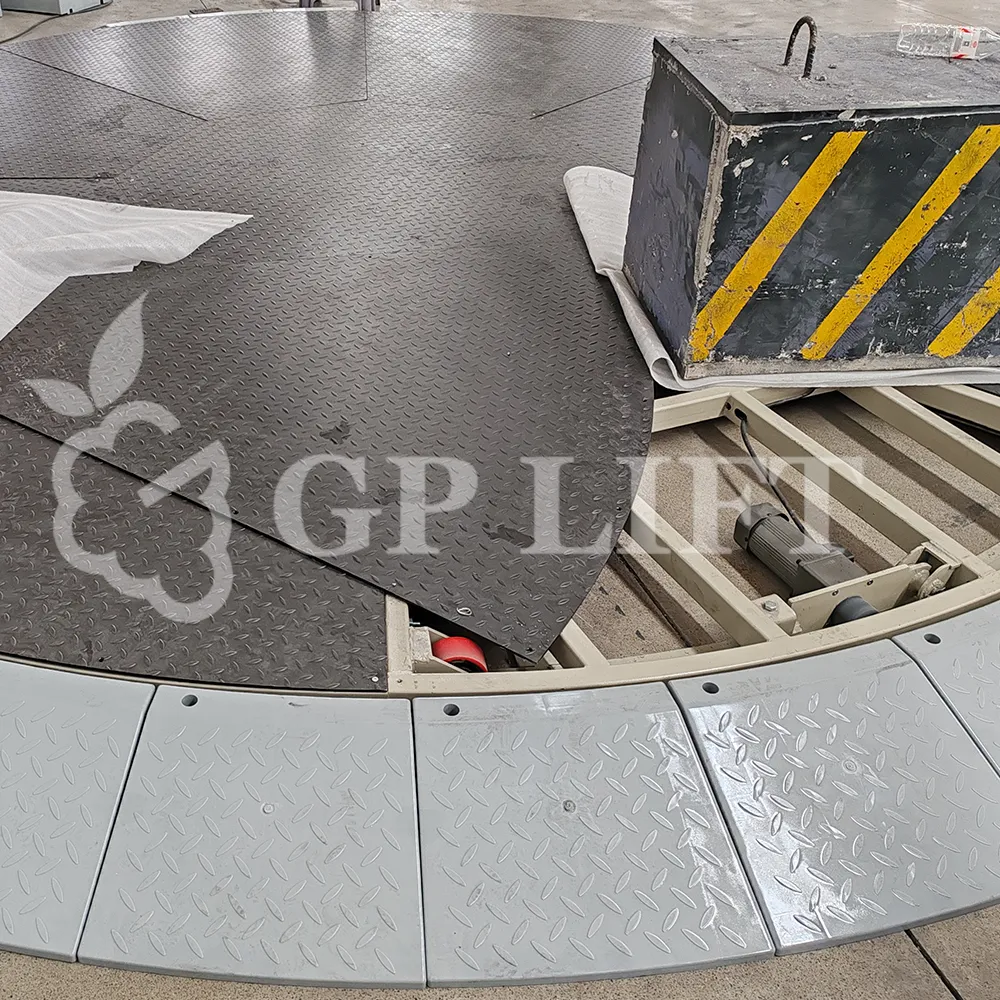

Steel Tube Frame

The frame is made of 80×40×3mm rectangular steel tubing and has passed strict load-bearing tests.

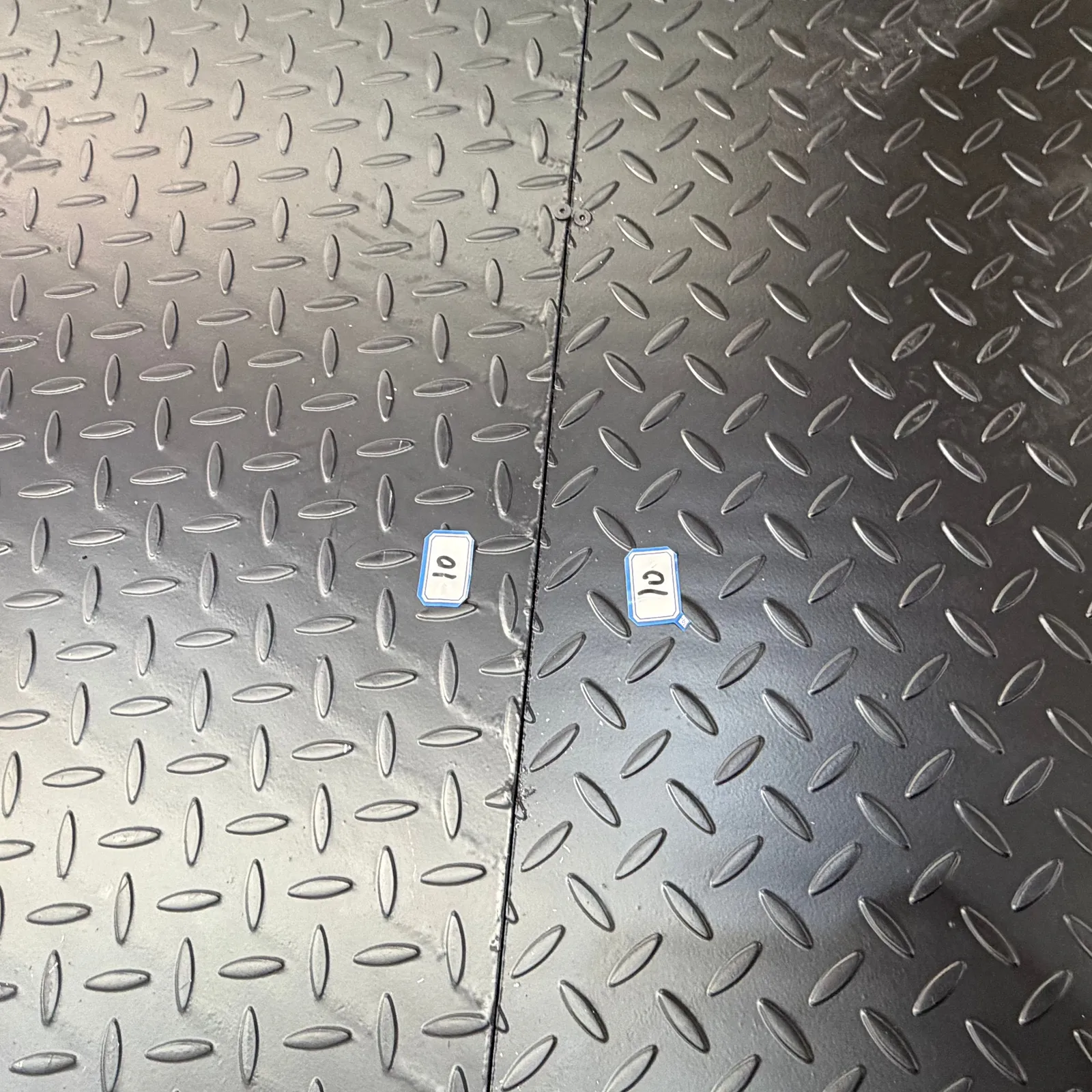

Clear Labeling

All components on the machine are clearly labeled for easy, quick installation and future maintenance.

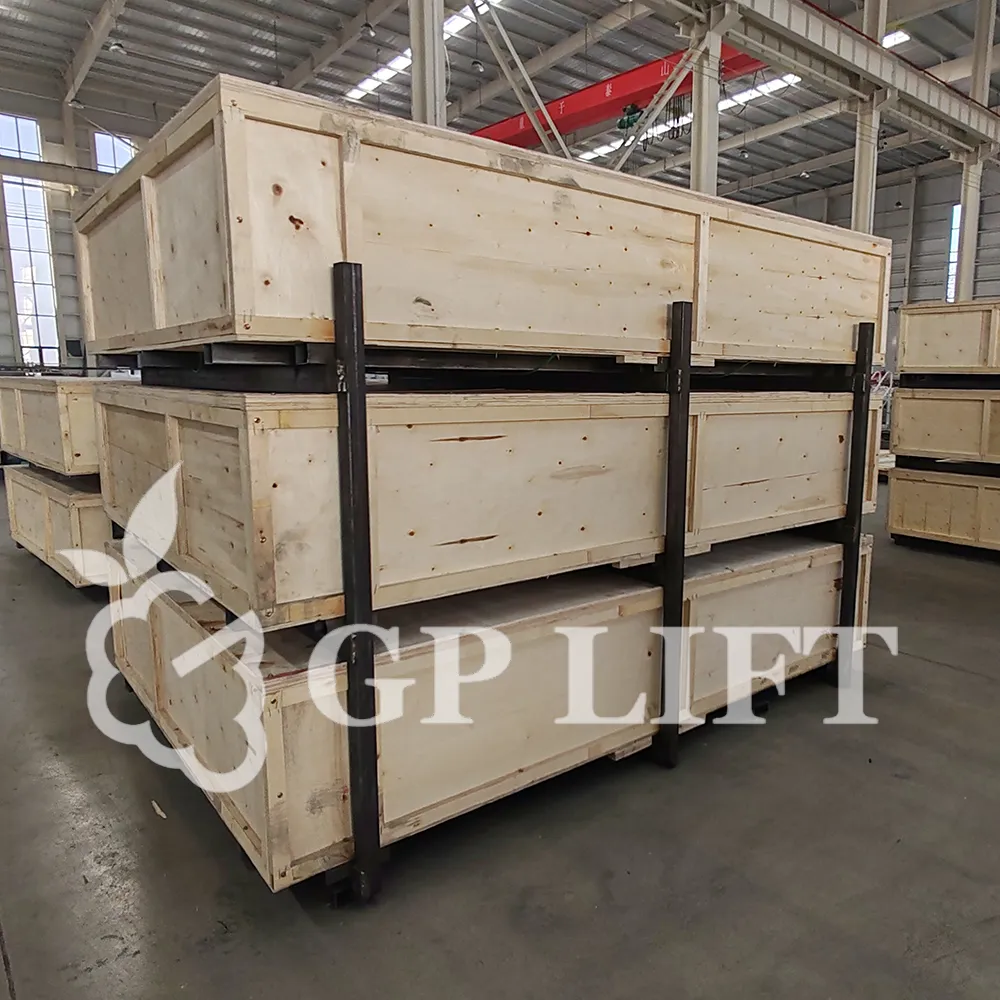

Wooden Packaging

Wooden packaging provides maximum protection for the machine during transportation, safe for global export shipping.

Turntable Options & Customization

Tailor your turntable with optional ramps, plug styles and colors to perfectly match your site and local standards.

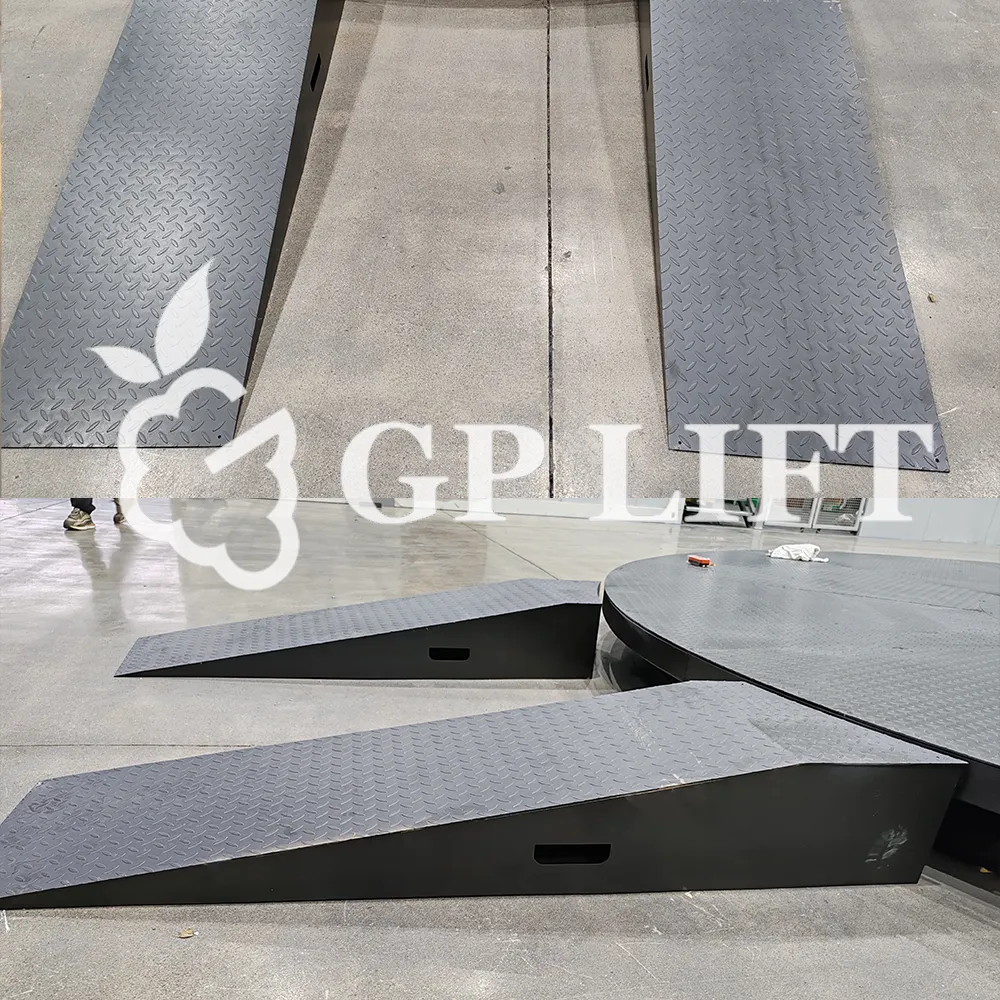

Access Ramp Options

A circle of PE ramp for 4.5m diameter turntables, for easy vehicles going up and down
A circle of steel ramp for 4m / 5m diameter turntables
Ramp length 400mm standard, custom lengths available

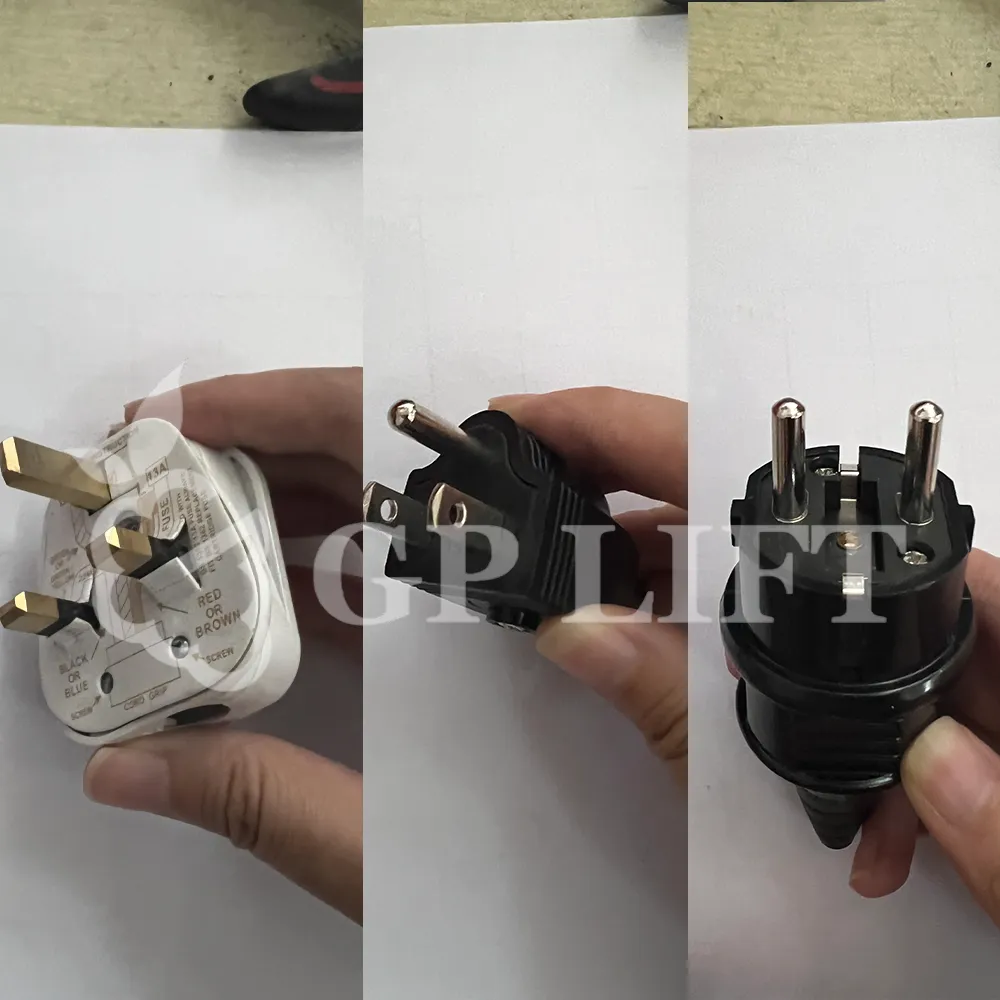

Power Plug Options

NEMA plug (US standard)
BS1363 plug (UK standard)
Schuko plug (EU standard)
AC 110V / 220V / 380V / 415V, single or three phase

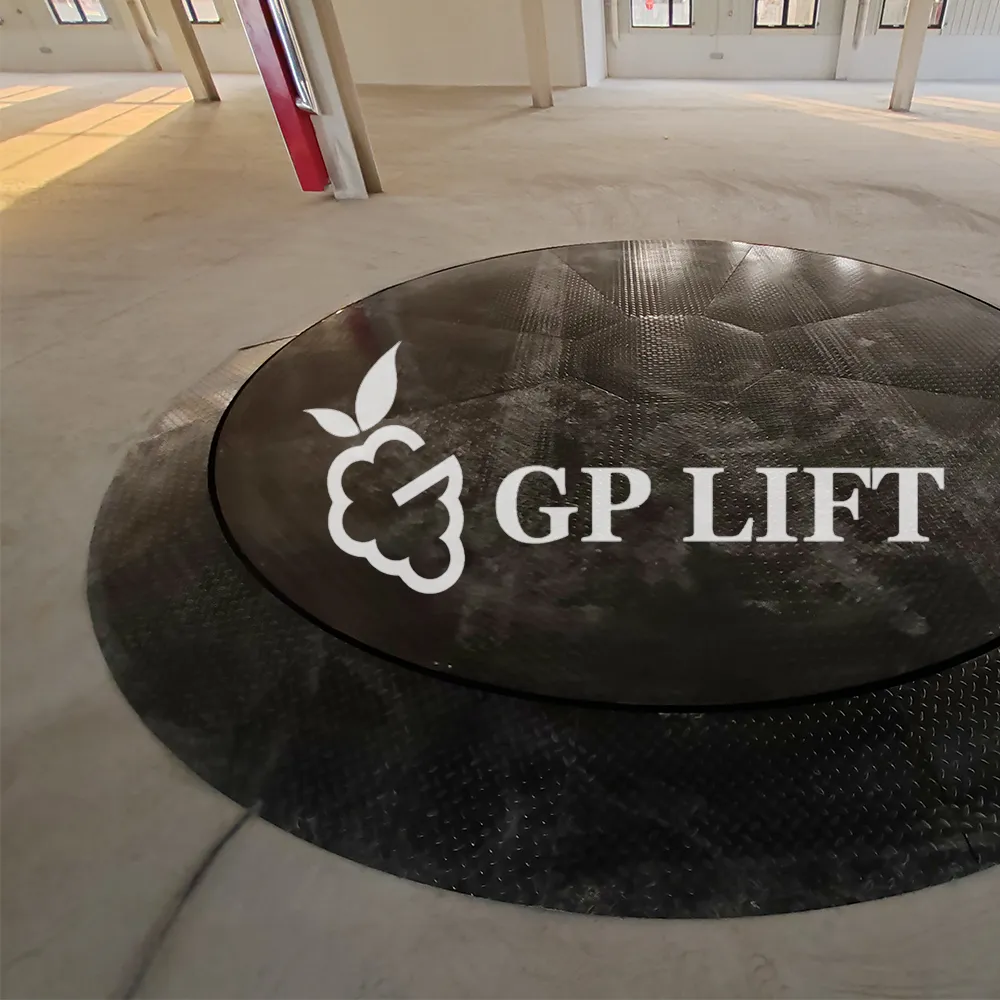

Color Customization

Colors customized according to the RAL color chart
Powder coating or hot-dip galvanizing / E-coating finish
Custom surface: tile, terrazzo, polyurethane, tempered glass, aluminum plate or bricks
Note: custom colors increase production time and cost

Why Our Vehicle Turntables Stand Out

Designed for global importers, villa developers and auto exhibition operators. Space saving, high display value, stable mechanical structure and long service life with full after-sales technical support.

Solve narrow garage turning radius trouble for private villas
360° uniform rotation for stunning auto showroom presentation
Dual installation solutions fit new construction & renovation sites
Modular assembly, remote online installation guidance
Complete export documents for customs clearance worldwide

Frequently Asked Questions

What is the maximum vehicle weight a turntable can carry?

Standard models support 3 to 5 tons, covering sedans, SUVs, and light commercial vehicles. Higher capacity platforms can be engineered for armored vehicles or limousines.

Does installation require a pit?

We offer both recessed and surface-mounted (low-profile) configurations. Recessed models sit flush with the floor, while low-profile versions minimize civil works for existing driveways and showrooms.

Can the turntable be used outdoors?

Yes. Outdoor models include weather-sealed drive components, drainage provisions, and corrosion-resistant surface treatment for rain, humidity, and temperature variation.

How is the turntable controlled?

Rotation is controlled by a wireless remote or wall-mounted panel, with adjustable speed, 360° continuous rotation, and safety stops. Options include app control and automatic return positioning.

What maintenance does a car turntable need?

Very little. Routine maintenance is limited to periodic drive lubrication, inspection of seals and safety switches, and cleaning of the rotation gap — typically a short annual check.
