Aerial Work Platform

Hydraulic Boom LiftTelescopic Aerial Work Platform 14m–20m

GP LIFT telescopic boom lifts provide 14–20 meter working height for construction, building maintenance and aerial installation projects. Stable hydraulic platform with 360° rotation, self-propelled driving system and full safety protection for high-altitude operations.

View Specifications
14m–20m Working Height
Self-Propelled Chassis
360° Platform Rotation
Hydraulic Telescopic Boom Lift

Telescopic Boom Lift Series

Select by working height and platform capacity. All models support custom voltage, diesel/electric power and travel drive options.

14m Boom Lift

Entry-level telescopic model for medium-height building maintenance, facade installation and warehouse high-bay lighting service.

  • Working height: 14m
  • Platform capacity: 200kg
  • Horizontal outreach: 7m

16m Boom Lift

Mid-range model for commercial building exterior wall construction, glass curtain wall installation and aerial equipment maintenance.

  • Working height: 16m
  • Platform capacity: 230kg
  • Horizontal outreach: 9m

20m Boom Lift

Heavy-duty model for high-rise construction, bridge inspection and large industrial facility aerial operations. Maximum outreach and load capacity in the series.

  • Working height: 20m
  • Platform capacity: 250kg
  • Horizontal outreach: 12m

Standard Model Specifications

Custom platform size, power source and travel speed available on request

ItemGPB-14GPB-16
Max. Lift Capacity230 KG
Max. Working Height15.6 m17.6 m
Max. Platform Height13.6 m15.6 m
Max. Horizontal Reach7.65 m9.4 m
Max. Up & Over Clearance7.24 m7.44 m
Platform Dimensions (L × W)1.83 × 0.76 m
Length (Stowed)6.76 m7.56 m
Width1.79 m2.19 m
Height (Stowed)1.98 m1.98 m
Platform Rotation±80°±90°
Turntable Rotation355° continuous

Why Choose GP LIFT Boom Lifts

Engineered for safe and efficient high-altitude work. Each unit integrates stable hydraulic telescopic boom, precise control system and multi-layer safety protection for construction and industrial maintenance projects.

  • Telescopic boom with smooth multi-stage hydraulic extension
  • 360° continuous turntable rotation with proportional control
  • Self-propelled driving, adjustable travel speed on slope
  • Overload protection, emergency stop & fall arrest system
  • AC / DC / Diesel power options for indoor & outdoor use

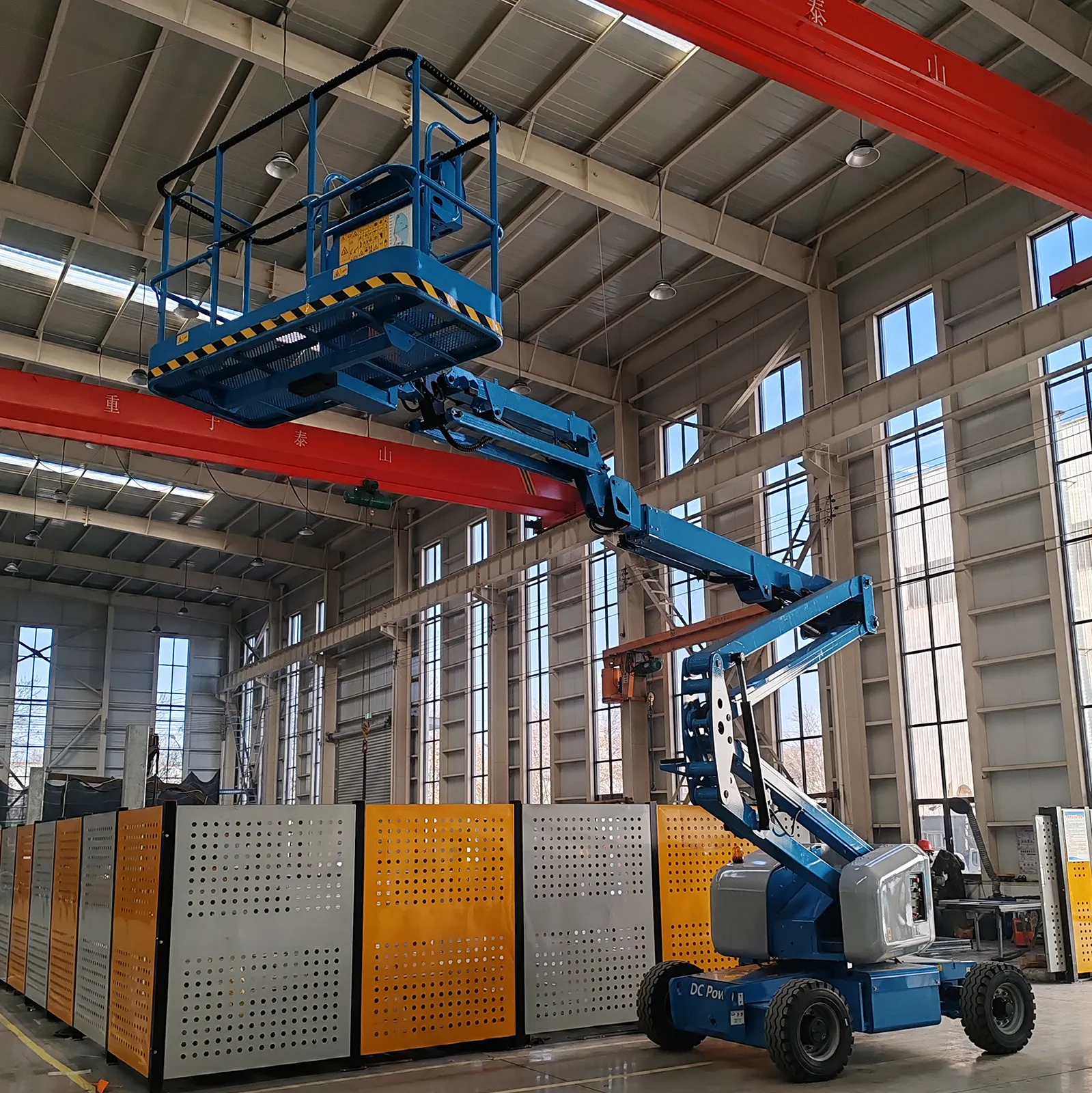

Aerial Boom Lift Working on Site

Boom Lift Applications: Where Articulated Platforms Work Best

Self-propelled boom lifts reach up and over obstacles, so they suit jobs a scissor platform or scaffolding cannot cover efficiently.

Building Construction & Facade Work

Cladding, glazing, painting and steel erection at height, with outreach that clears scaffolding and site obstacles. Readhow to select a boom lift for your project.

Plant & Facility Maintenance

Steel mills, refineries, power stations and warehouses use booms for light replacement, duct and pipe servicing and overhead crane maintenance. Follow ourboom lift safety tipsbefore operating.

Mining & Remote Industrial Sites

Diesel four-wheel-drive units handle rough ground and dust at mine maintenance yards and processing plants, with sealed harnesses for high-dust environments.

Indoor Warehouse & Racking Installation

Electric, zero-emission models work inside distribution centres for high-level racking, sprinkler and lighting installation without exhaust fumes.

Municipal, Stadium & Airport Maintenance

Lighting towers, signage, canopies and terminal facades are serviced from the basket without closing the area below.

Ports, Shipyards & Outdoor Yards

Corrosion-resistant finishes and heavy-duty seals for coastal salt air, plus gradeability for uneven concrete and dock aprons.

Deciding between platform types? Comparescissor lift vs boom lift, or see how we equipped aChilean mining maintenance site.

Frequently Asked Questions

What working heights and outreach are available?

Standard models range from 10m to 22m working height with horizontal outreach up to 18m, covering building maintenance, warehouse, and industrial applications.

Should I choose diesel or electric power?

Diesel models suit rough terrain and outdoor sites with no power supply, while electric models deliver zero emissions for indoor facilities and emission-sensitive projects.

Are certifications available for export?

Yes. Machines can be supplied with CE certification and full documentation packs, including load charts, wiring diagrams, and bilingual service manuals.

How durable is the machine in dusty or corrosive environments?

Sealed electrical harnesses, heavy-duty cylinder seals, and enhanced filtration are available for desert dust, coastal salt air, and high-heat operating conditions.

What maintenance is required?

Routine maintenance is limited to engine/filter service, hydraulic oil checks, and cylinder seal inspection. A spare-parts kit and service manual are supplied for local servicing.

What is the difference between a boom lift and a scissor lift?

A scissor lift raises a platform straight up on an X-frame and gives a larger, more stable deck for two to four workers. A boom lift extends a telescopic or articulated arm up and over obstacles, reaching further horizontally — so it is the better choice for facades, pipe racks and overhead services.

What jobs are boom lifts most often used for?

Typical jobs include building construction and facade installation, plant and crane maintenance, painting, glazing, signage, lighting, warehouse racking and municipal or airport maintenance — anywhere workers need to reach over an obstruction rather than straight up.

Can a boom lift be used indoors?

Yes. Electric and hybrid models are designed for indoor use: they produce no exhaust emissions, run quieter on concrete floors, and can be fitted with non-marking tyres. Diesel models are specified for outdoor and rough-terrain sites.
