Warehouse & Industrial Freight Elevator

Goods Lift / Cargo LiftMezzanine · Freight Elevator · Garage Lift Solutions

Name: Hydraulic Cargo Lift (Guide Rail)
Brand: GP Lift
Availability: InStock

Get your customized lift for material handling. Whether you need a mezzanine lift, freight elevator or garage lift, GP LIFT delivers hydraulic cargo lifts up to 30 ton load and 15m lifting height — engineered for warehouses, factories and commercial buildings.

Explore Cargo Lift Types

Up to 15m Lifting Height

Up to 30 Ton Load Capacity

5-Year Structural Warranty

Choose from Different Cargo Lift Types

By production structure, cargo lifts fall into Three Post, Four Post and Full Mesh Cargo Lift. Maximum load up to 30 ton, lifting height up to 15 meters. Let us help choose the right model for your working site.

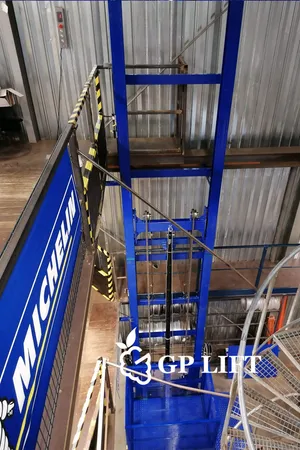

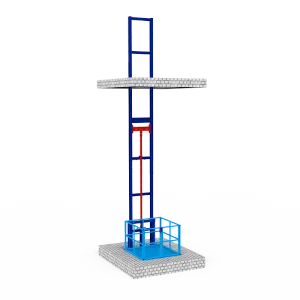

Two Post Cargo Lift

Low Loading Capacity in Limited Space

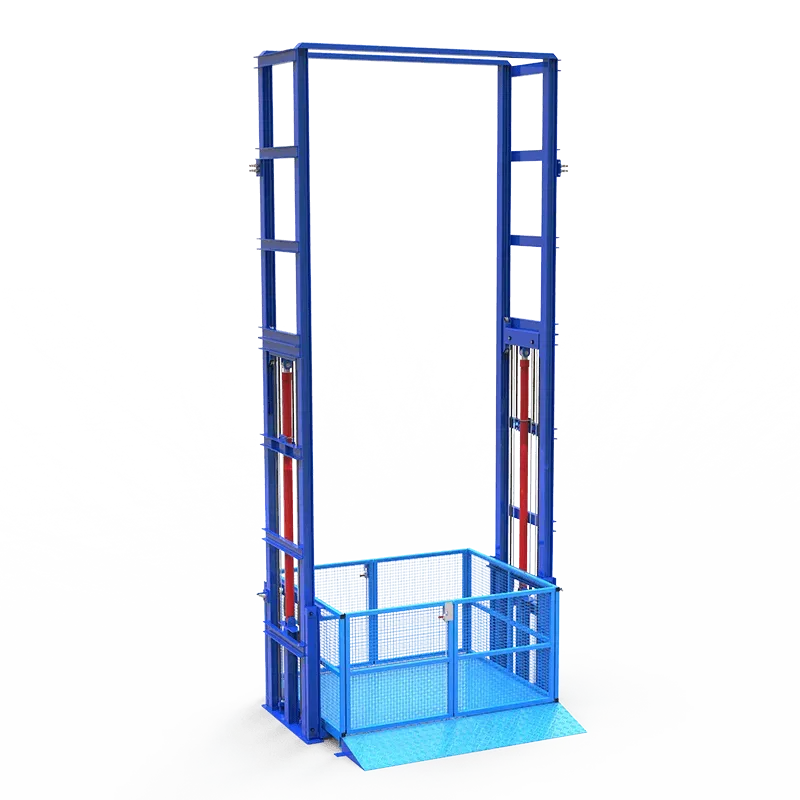

Four Post Cargo Lift

A Standard Model for General Use

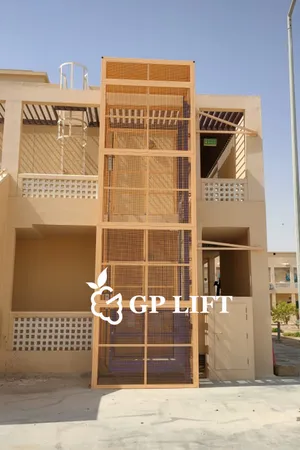

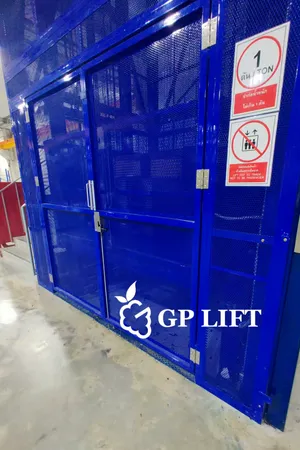

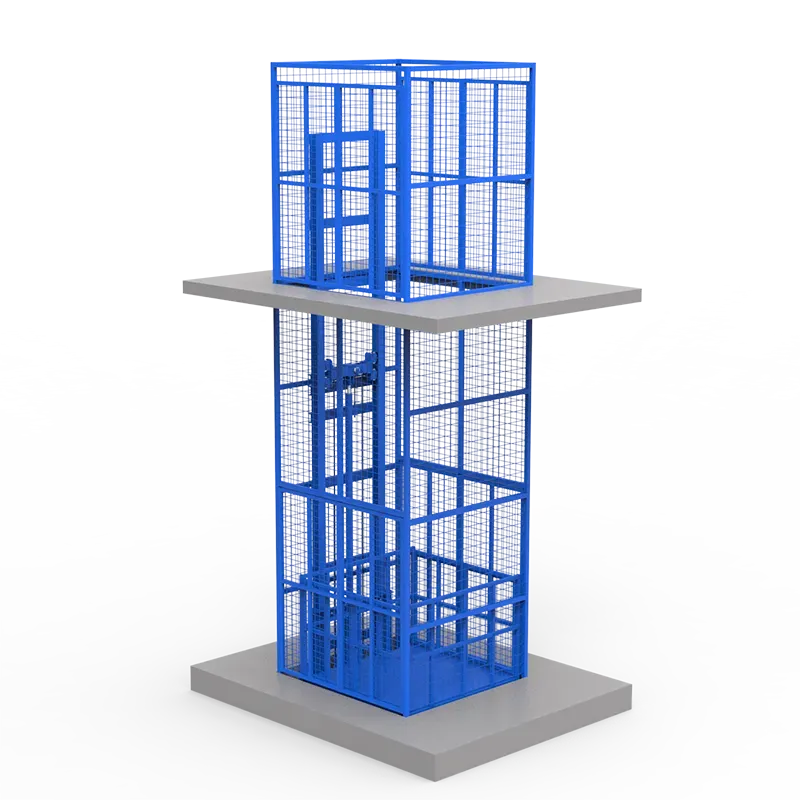

Full Mesh Cargo Lift

Enhanced Safety for Your Project

Specifications Comparison:
Two-post vs Four-post Cargo Lift

Compare the specifications of two-post and four-post cargo lifts to find the right solution for your warehouse or industrial project.

Item	Two-post Cargo Lift	Four-post Cargo Lift
Rated Capacity	0-1000 KG	1000KG - 5000KG (Customizable)
Lifting Height	0-12m	0-10 m
Clear Platform Size	1.2m*1.2m	1.51.5m / 22m (Customizable)
Installation Type	1. Pit‑mounted: flush with finished floor 2. Above‑ground: supplied with access ramps
Power Supply	3‑phase power (Customizable)
Lifting Speed	4-6 m / min
Control Panel	Quantity matches number of landing stops
Guardrail on Platform	1100 mm height（Standard）
Hydraulic Cylinder & Power Unit	Custom‑designed Per Project Requirements
Ramp	Custom‑designed Per Project Requirements
Hydraulic hose	5m standard length
Package	1. Full‑container shipment: stretch‑film wrapped to maximize container loading quantity 2. LCL shipment: fully enclosed wooden crates for product safety
Safety Feature	1. Safety door 2. Explosion-proof valve 3. Emergency stop 4. Double-security protection
Optional	1. Mesh Safety Enclosure (refer to drawings for details) 2. Landing door on each floor 3. Electromagnetic lock 4. Safety cage on platform 5. Alternative platform surface material 6. Custom platform guardrail height 7. Overload warning alarm 8. Custom Color (RAL code) 9. Branded-name PLC: MITSUBISHI / SIEMENS 10. Silent hydraulic power unit

Standard Features of GP Cargo Lifts

What makes GP LIFT safe and reliable

Stable 4 post design

Explosion valve

Emergency stop

5-year warranty on main structural components (indoor use)

Top and ground limit

Travel speed at 4–6 m/min

Control panels on every level

380V 3-phase hydraulic station

180-degree in and out

Easy plug-in guide rail connection

1.4m height safety railing

Safety outwards doors with interlocks

150mm pit

Commercial and industrial use

1-year warranty electrical components

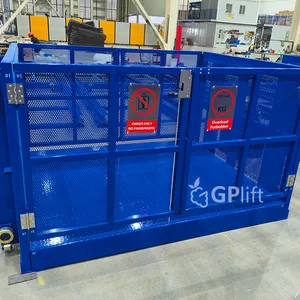

Platform with 1.1m Railing

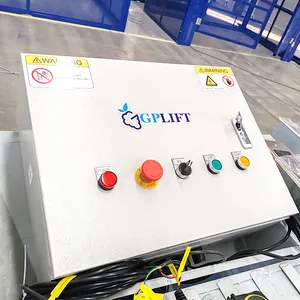

Control Box with emergency button

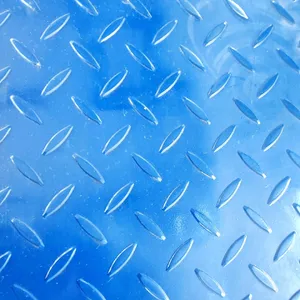

Anti-skip checkered plate

Explosion-proof Hydraulic Valve

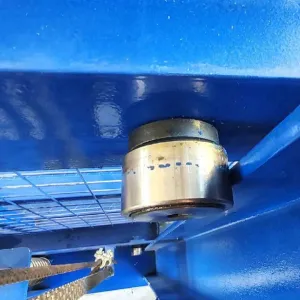

Guide Wheel

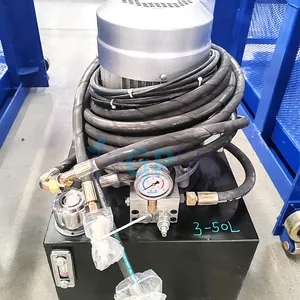

Hydraulic Unit

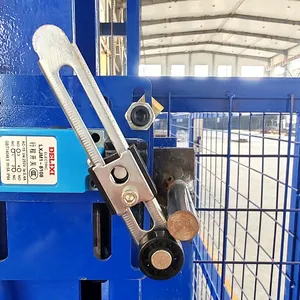

Delixi Limit Switch

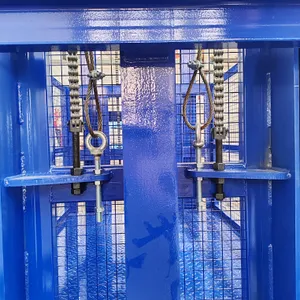

Double Security System

Optional Custom Accessories for Cargo Lifts

Customize extra safety functions & auxiliary components to match your unique warehouse, factory and industrial project demands

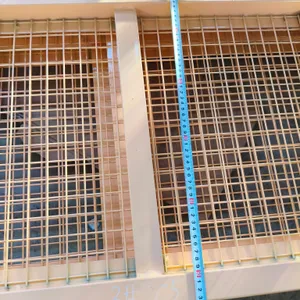

Wire Mesh Enclosure

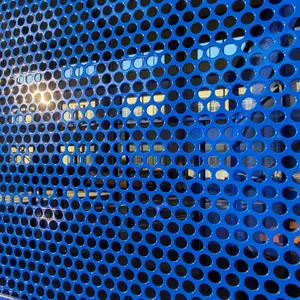

Stamped Enclosure

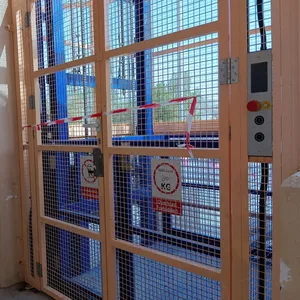

Landing Door on Each Floor

Overload Warning Alarm

Low Noise Hydraulic Power Unit

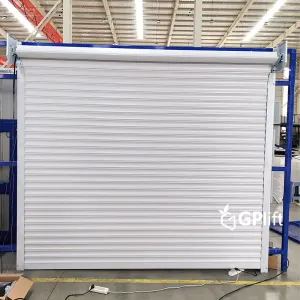

Electric Roller Shutter Safety Door

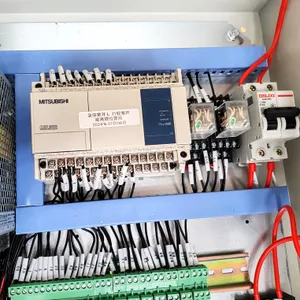

MITSUBISHI / SIEMENS PLC for Cargo Lift

Waterproof Protection Cabinet for Hydraulic Station

Waterproof Hydraulic Station Cabinet

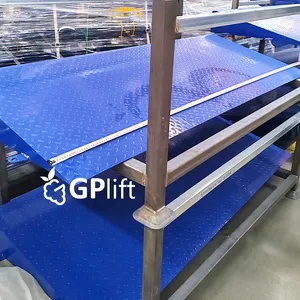

Loading Steel Ramp for Pitless Installation

Pitless Installation Loading Steel Ramp

Frequently Asked Questions

What load capacity can a cargo lift handle?

Standard guide rail cargo lifts range from 1 to 5 tons, with heavier custom models available on request. Platform size, lifting height, and speed are matched to your site and load.

What shaft or pit requirements are needed for installation?

Most models use a compact pit of 100-200mm, and pitless options with steel ramps are available where floor excavation is not allowed. Our engineers provide free 3D layout and installation drawings based on your site dimensions.

How long does production and installation take?

Standard models are typically produced within 15-30 days, with on-site installation taking 3-7 days depending on shaft preparation and customization level.

What power supply is required?

Cargo lifts can be configured for 220V single-phase or 380V/415V three-phase power per your local standard. Optional manual lowering ensures safe operation during power failure.

Can the platform size and lifting height be customized?

Yes. Platform dimensions, travel height, door types (roller shutter, mesh, steel), and safety features are all customizable to match your building layout and load requirements.
